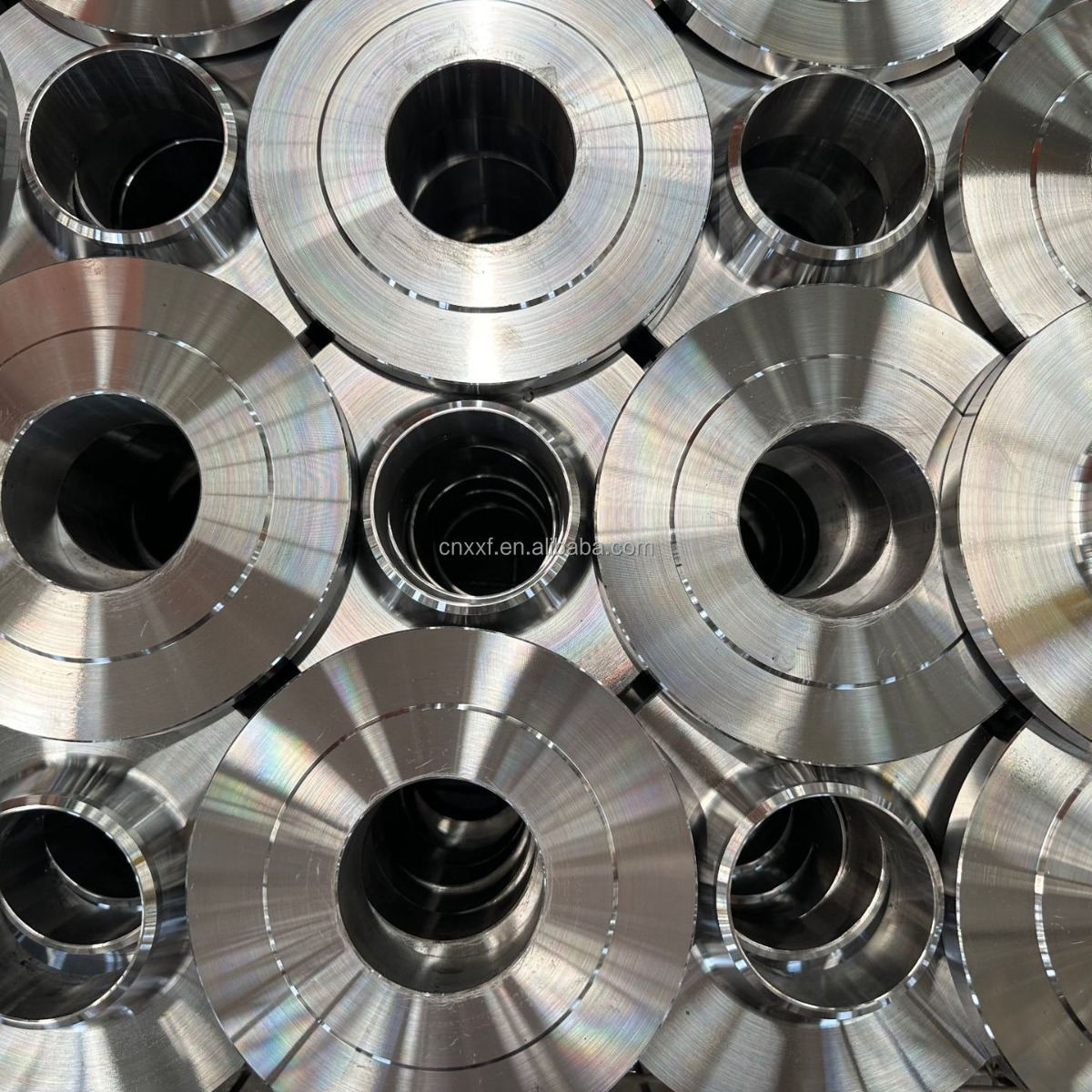

NXF ASTM A564/A564M AMS 5629 13-8Mo 1.4534 S13800 Socked Welding Flanges Alloy Plate Flange DN15-1200 Class150-1500lb

Product Categories

NXF GROUP (New XiFei (SuZhou) Business Co.,Ltd)

Contact Now

NXF ASTM A564/A564M AMS 5629 13-8Mo 1.4534 S13800 Socked Welding Flanges Alloy Plate Flange DN15-1200 Class150-1500lb

Place of Origin : Jiangsu, China

Brand Name : NXF

Model Number : DN15-1200

Standard : ASTM

Product name : Socked Welding Flanges

Material : 13-8Mo 1.4534 S13800

OD : DN15-1200

Pressure : Class150-1500lb

Application : Pipe Lines Connect

Type : Socked Welding

Standard or Nonstandard : ASTM A564/A564M AMS 5629

MOQ : 1 Piece

Packing : Wooden Box

Brand : NXF

MOQ : 10 pieces

Price : $2.00/pieces 10-99 pieces

Contact Now

Product Description

PH 13-8 Mo is a stainless steel with approximately 13% chromium and 8% nickel content that has good resistance to corrosion in general as well as to stress corrosion cracking. PH 13-8 Mo offers better mechanical properties in demanding environmental conditions in comparison to other materials based on iron. Precise control of the microstructure is achieved through vacuum melting and remelting. Medium to high strength can be achieved through precipitation hardening aging treatments. Socket welding flange refers to the pipe end inserted into the flange ring ladder, welded in the pipe end and the outer flange. There are two types with and without a neck. The rigidity of the flange with the neck tube is good, the welding deformation is small, the sealing is good, and can be used for the pressure of 1.0~10.0MPa. The Type B flange for the container is also a socket welding flange, which is used for occasions with high sealing requirements. During the design, the socket welding flange can be checked according to the integral flange.

NXF ASTM A564/A564M AMS 5629 13-8Mo 1.4534 S13800 Socked Welding Flanges Alloy Plate Flange DN15-1200 Class150-1500lb

Specification

item	value
Model Number	DN15-1200
Product name	Socked Welding Flanges
Material	13-8Mo 1.4534 S13800
OD	DN15-1200
Pressure	Class150-1500lb
Application	Pipe Lines Connect
Type	Socked Welding
Standard or Nonstandard	ASTM A564/A564M AMS 5629
MOQ	1 Piece
Packing	Wooden Box
Brand	NXF

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Applications

Certifications

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
