Standard ASTM Pipe Lines Connect Alloy B-2 / UNS N10665 / W.Nr. 2.4617 DN15-1200 Class150-2500lb 8-Spectacle Blind Flange

Product Categories

NXF GROUP (New XiFei (SuZhou) Business Co.,Ltd)

Contact Now

Standard ASTM Pipe Lines Connect Alloy B-2 / UNS N10665 / W.Nr. 2.4617 DN15-1200 Class150-2500lb 8-Spectacle Blind Flange

Place of Origin : Jiangsu, China

Brand Name : NXF

Model Number : DN15-1200

Standard : ASTM

Product name : 8-Spectacle Blind Flange

Material : Alloy B-2 / UNS N10665 / W.Nr. 2.4617

OD : DN15-1200

Pressure : Class150-2500lb

Application : Pipe Lines Connect

Type : 8-Spectacle Blind

Standard or Nonstandard : ASTM B333,B622,B775

MOQ : 1 Piece

Packing : Wooden Box

Brand : NXF

MOQ : 10 pieces

Price : $2.00/pieces 10-99 pieces

Contact Now

Product Description

B-2 alloy is a solid solution strengthened nickel-molybdenum alloy commonly used in extreme reduction conditions. Compared to the previous alloy B (UNS N10001), alloy B-2 significantly reduces the content of carbon, silicon and iron. Compared with B alloy, B-2 alloy is less prone to corrosion in the welding zone in the welding state. Controlling other alloying elements, such as iron and chromium, solves potential problems with molding and forming. The strict chemical control of B-2 alloy during the production process makes it used in the welded state and less susceptible to stress corrosion cracking under many conditions.

8-Spectacle Blind Flange, as the name suggests, is shaped like a figure 8, one end of which is a blind plate, the other end is a combination of throttling rings, when conveying fluid, the throttle ring is used, and the blind plate is used when cutting off, a bit like the role of a cut-off valve, which can be used to cut off when the valve leaks. Its sealing performance is better. For systems that require complete isolation, it is generally chosen as a reliable means of isolation. There should be two stop valves before and after the figure 8 blind plate, and when all are closed, replace the state of the figure 8 blind plate. Common heat exchanger operation and backup, reactor operation and backup, nitrogen pipeline and process pipeline connection and so on. Another feature is that it is clearly marked and easy to identify its installation status. The main role played by the eight-figure blind plate is complete partition, just like the role of a gate valve with 100% reliable performance and will not be operated by mistake.

Standard ASTM Pipe Lines Connect Alloy B-2 / UNS N10665 / W.Nr. 2.4617 DN15-1200 Class150-2500lb 8-Spectacle Blind Flange

Specification

item	value
Product name	8-Spectacle Blind Flange
Material	Alloy B-2 / UNS N10665 / W.Nr. 2.4617
OD	DN15-1200
Pressure	Class150-2500lb
Application	Pipe Lines Connect
Type	8 Spectacle Blind
Standard or Nonstandard	ASTM B333,B622,B775
MOQ	1 Piece
Packing	Wooden Box
Brand	NXF

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Applications

Certifications

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese

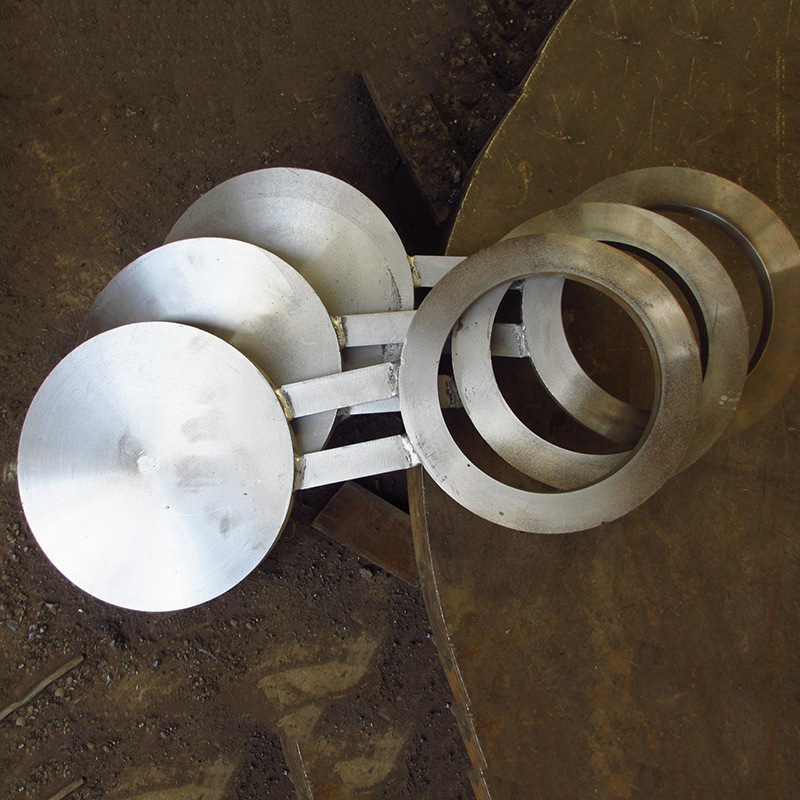

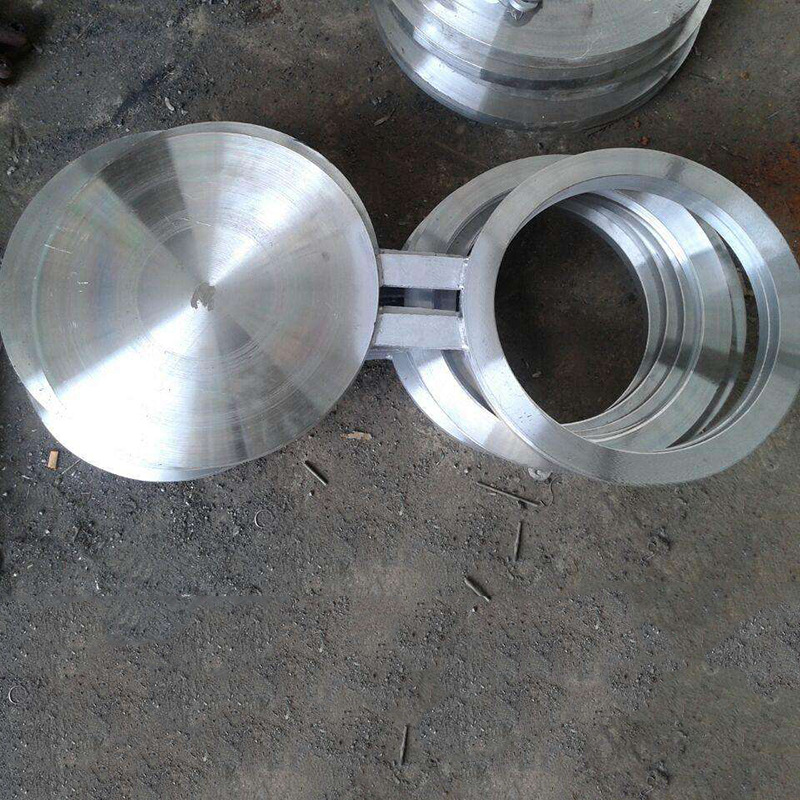

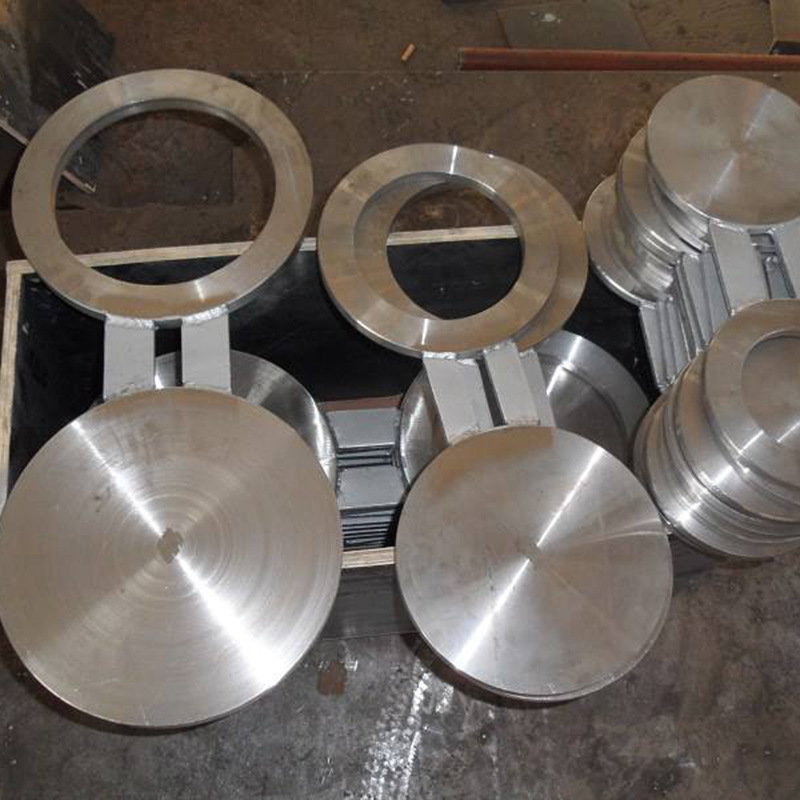

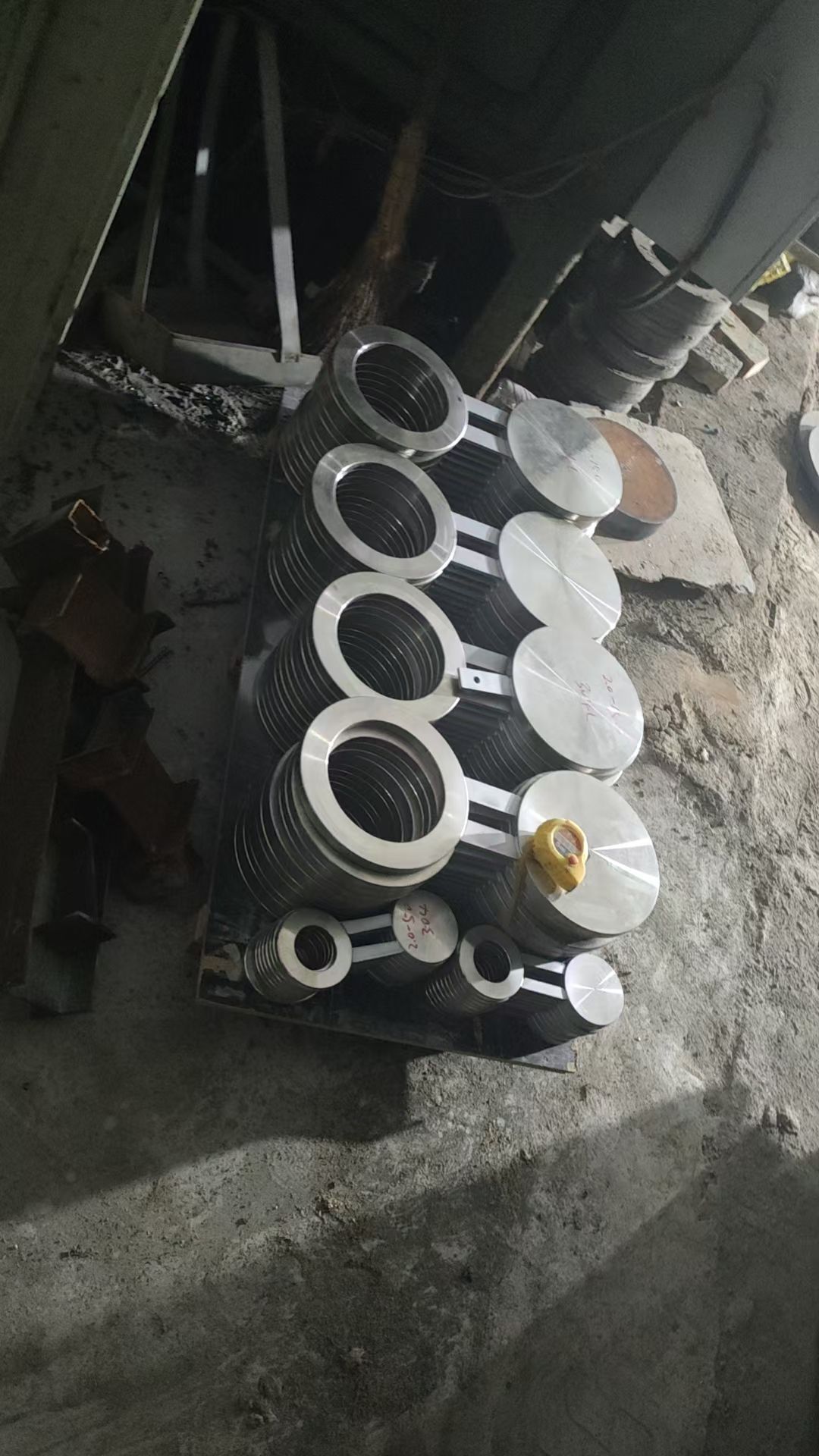

Standard ASTM Pipe Lines Connect Alloy B-2 / UNS N10665 / W.Nr. 2.4617 DN15-1200 Class150-2500lb 8-Spectacle Blind Flange Images
