NXF 1.4534 S13800 ASTM A564/A564M AMS 5629 13-8Mo Thread Flanges DN15-1200 Class150-2500lb DIN Standard Welding Plate Flange

Place of Origin : Jiangsu, China

Brand Name : NXF

Model Number : DN15-1200

Standard : ASTM, ASTM A564/A564M AMS 5629

Product name : Thread Flanges

Material : 13-8Mo 1.4534 S13800

OD : DN15-1200

Pressure : Class150-2500lb

Application : Pipe Lines Connect

Type : Thread

MOQ : 1 Piece

Packing : Wooden Box

Brand : NXF

MOQ : 10 pieces

Price : $2.00/pieces 10-99 pieces

Contact Now

Product Description

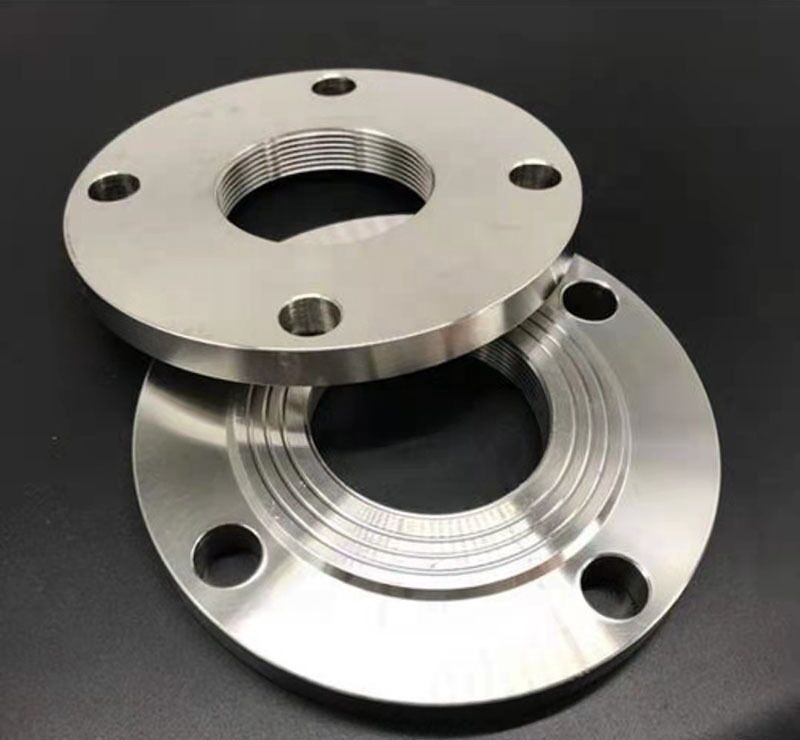

PH 13-8 Mo is a stainless steel with approximately 13% chromium and 8% nickel content that has good resistance to corrosion in general as well as to stress corrosion cracking. PH 13-8 Mo offers better mechanical properties in demanding environmental conditions in comparison to other materials based on iron. Precise control of the microstructure is achieved through vacuum melting and remelting. Medium to high strength can be achieved through precipitation hardening aging treatments. The threaded flange is a kind of flange connected with the pipe by the thread. When designing, it can be treated by loose flange. The advantage is that no welding is required, and the additional torque generated by the flange deformation on the cylinder or pipe is small. The disadvantage is that the flange thickness is large and the cost is high. Suitable for high pressure pipeline connection.

NXF 1.4534 S13800 ASTM A564/A564M AMS 5629 13-8Mo Thread Flanges DN15-1200 Class150-2500lb DIN Standard Welding Plate Flange

Specification

item	value
Model Number	DN15-1200
Product name	Thread Flanges
Material	13-8Mo 1.4534 S13800
OD	DN15-1200
Pressure	Class150-2500lb
Application	Pipe Lines Connect
Type	Thread
Standard or Nonstandard	ASTM A564/A564M AMS 5629
MOQ	1 Piece
Packing	Wooden Box
Brand	NXF

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Applications

Certifications

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese

NXF 1.4534 S13800 ASTM A564/A564M AMS 5629 13-8Mo Thread Flanges DN15-1200 Class150-2500lb DIN Standard Welding Plate Flange Images
